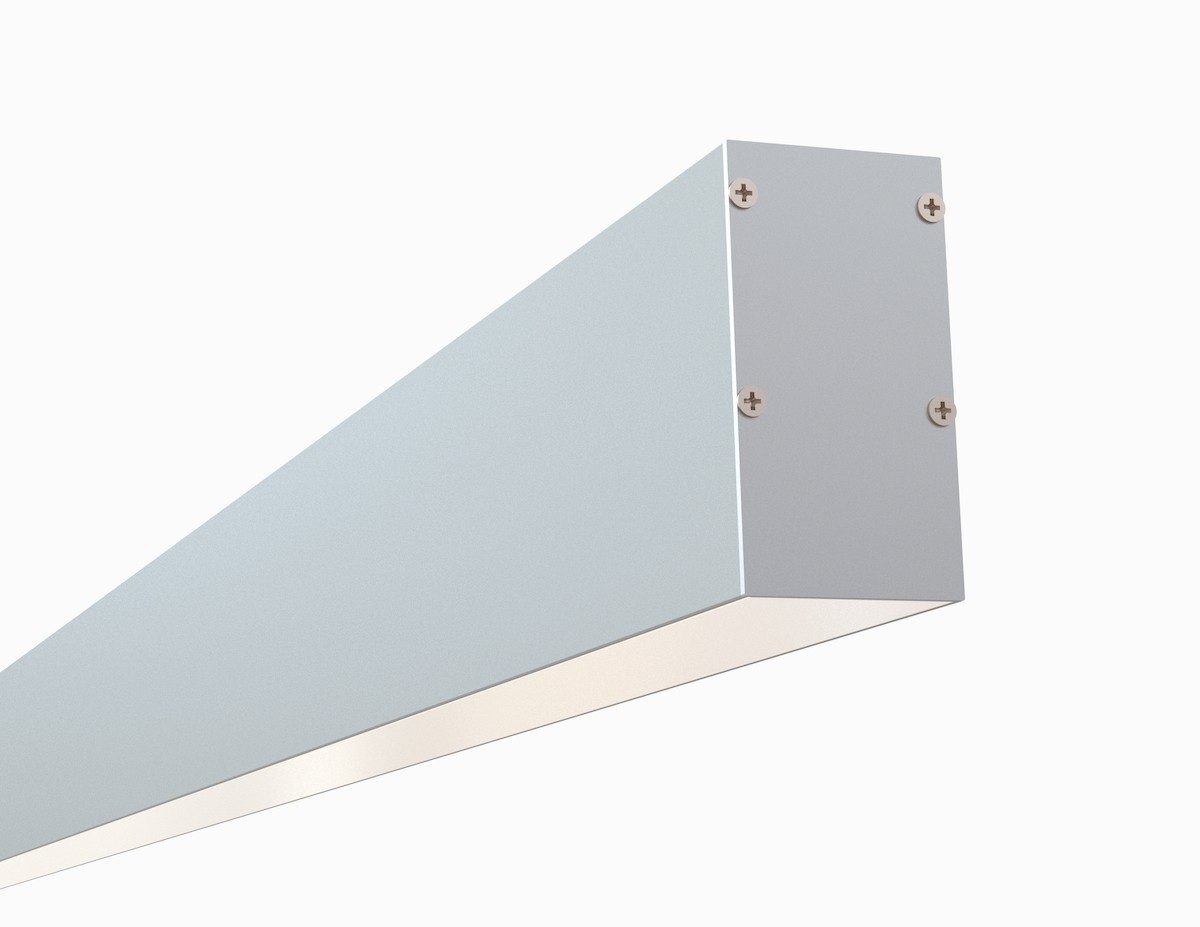

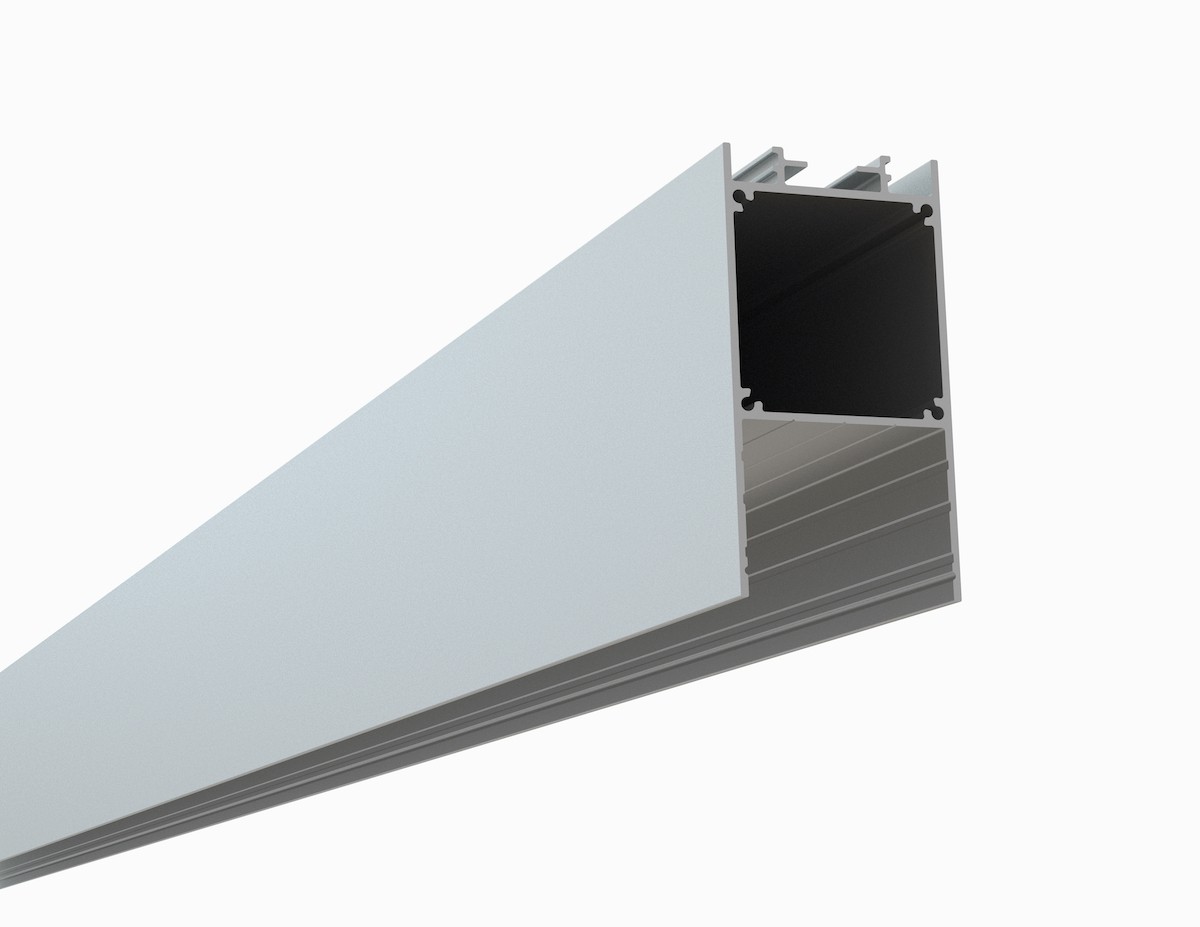

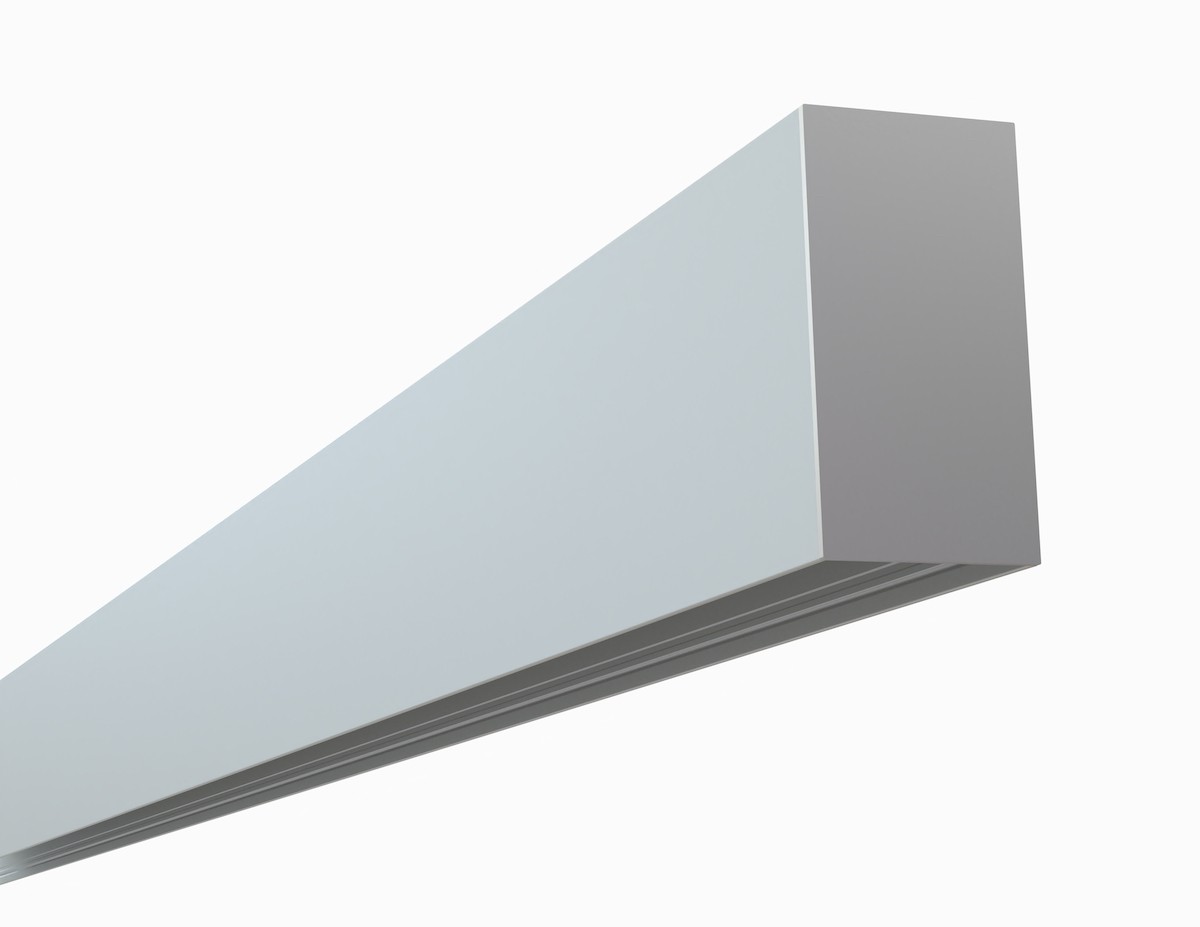

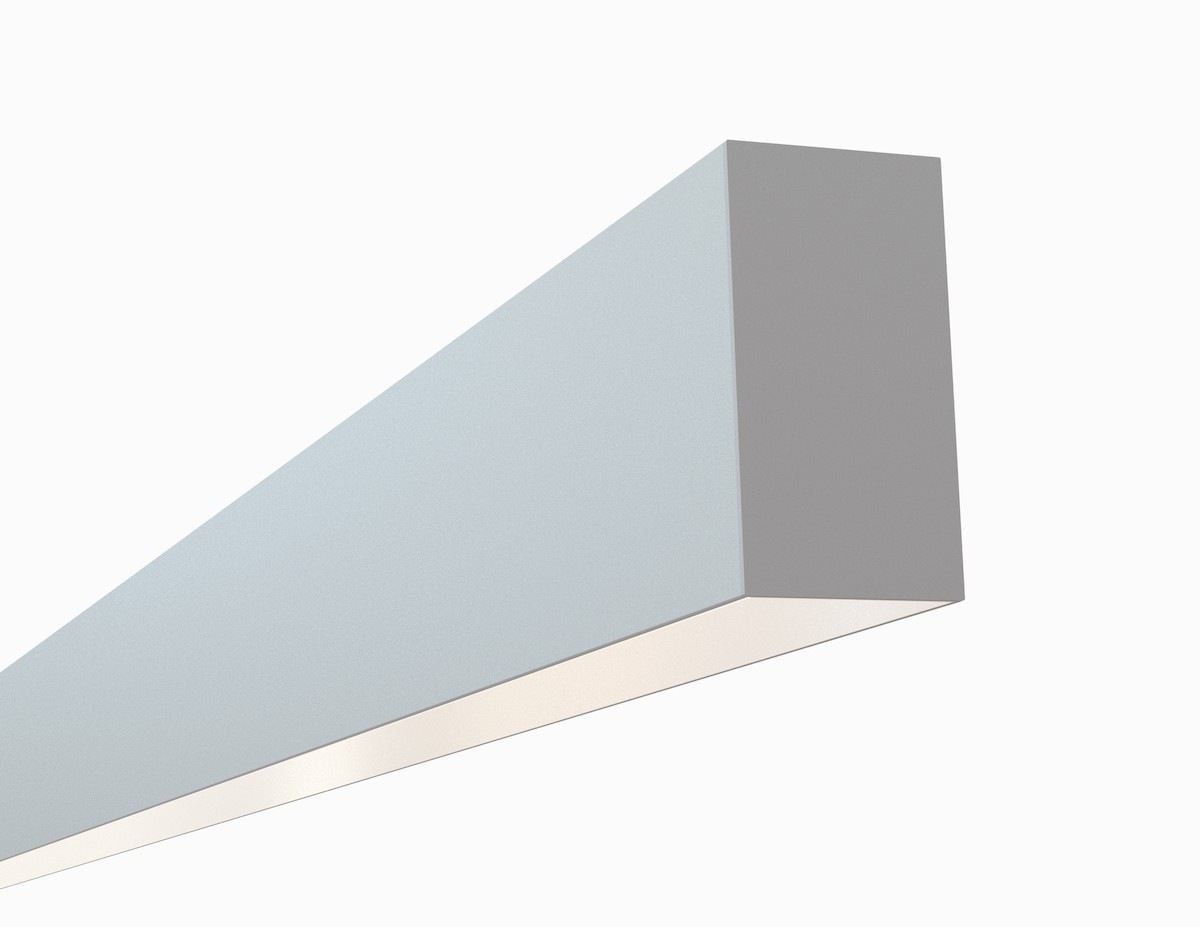

535ASL – Slim Linear Pendant LED Channel

The 535 Series is a Suspended Slim LED Aluminum Channel for architectural applications with a surface area that supports LED lighting sources up-to 30mm (1.18”) wide.

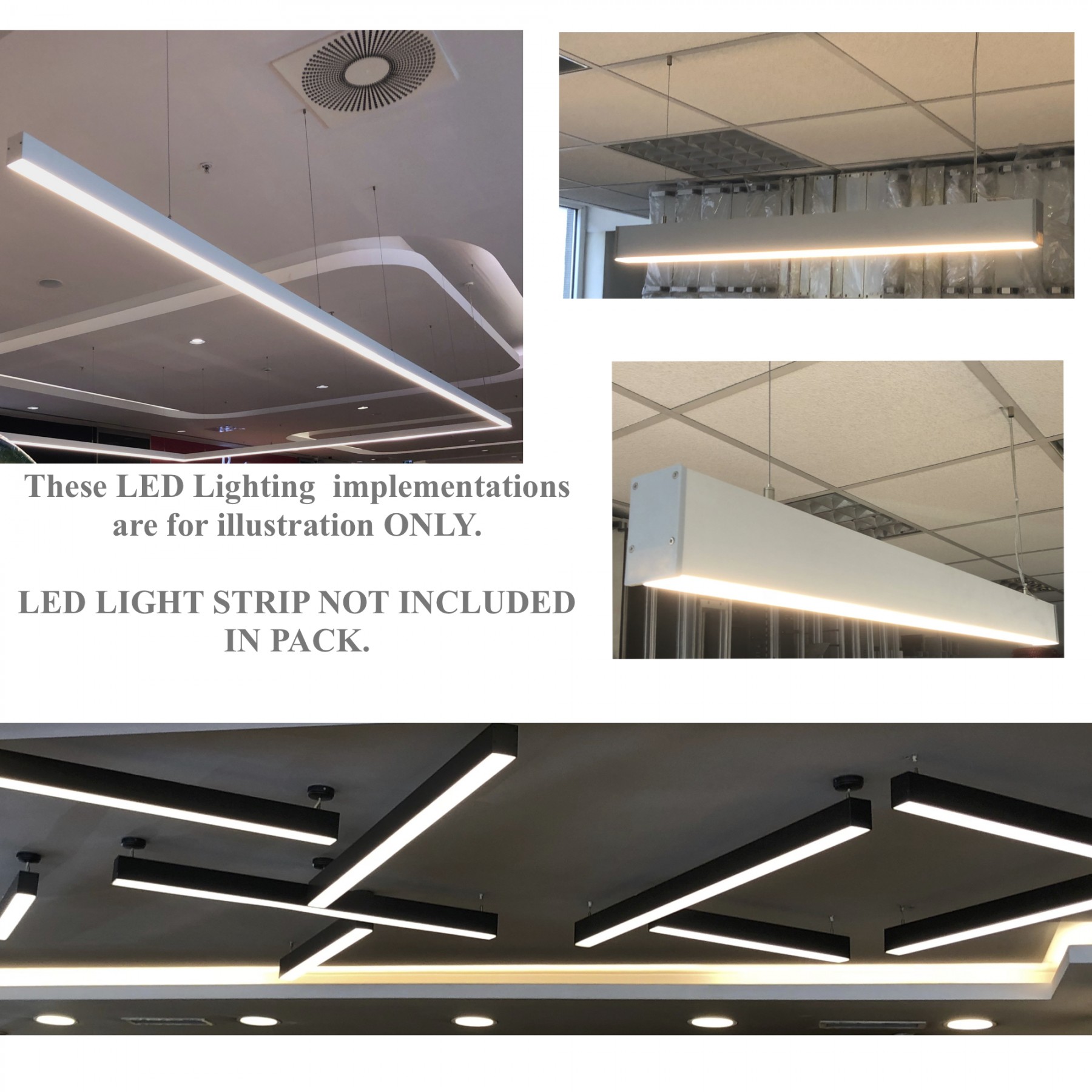

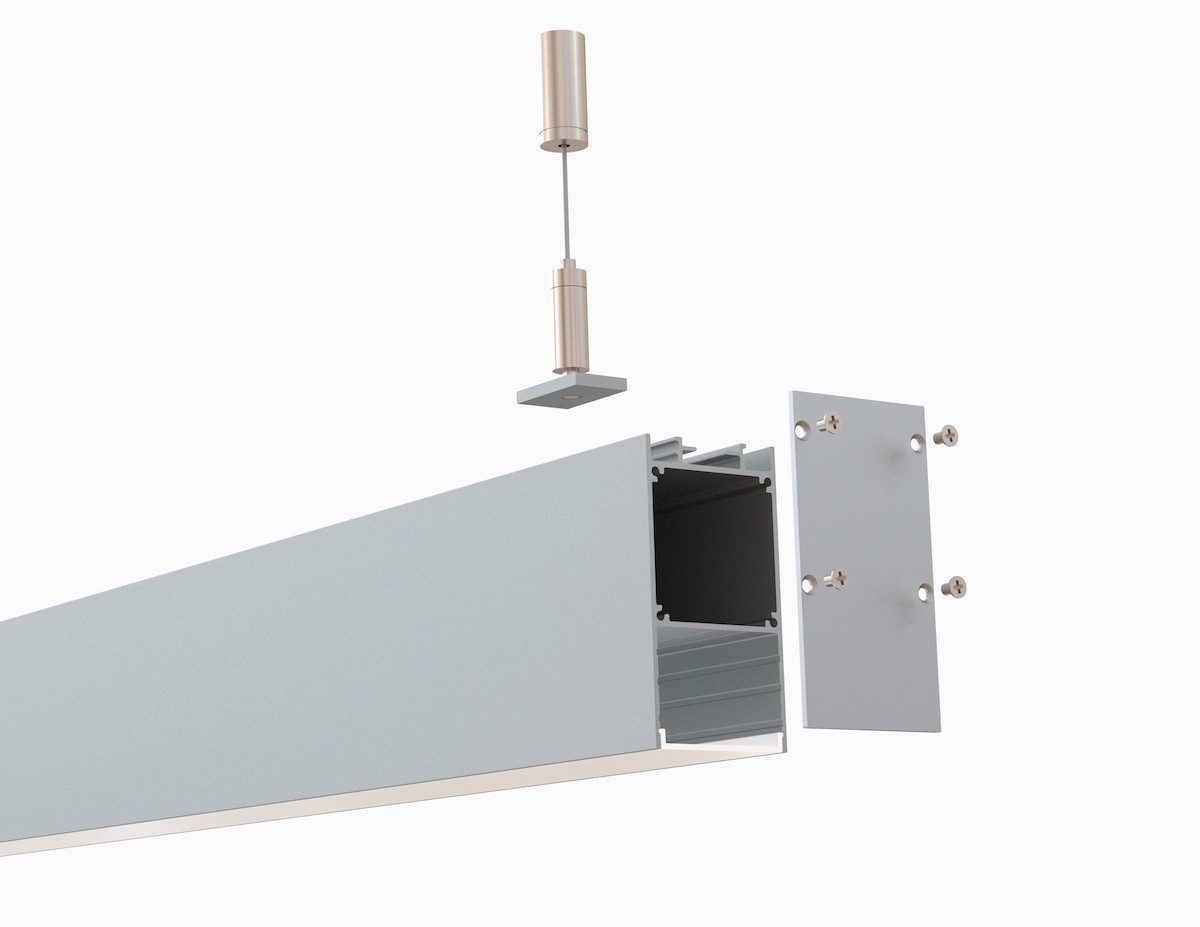

It offers an internal housing space for slim LED Drivers and can be used in Suspended and Surface Mount applications.

Type:           LED Channel
Material:   Aluminum 6063-T5
Surface:     Natural Anodised
Height:       70.00mm / 2.76″
Width:        36.7mm / 1.45″

Length Availability
4ft (Actual Size 47”) / 1.20m
8ft (Actual Size 94”) / 2.40m
10ft (Actual Size 118”) / 3.00m
Custom Lengths up to 10ft / 3m

DOWNLOAD SPEC SHEET
