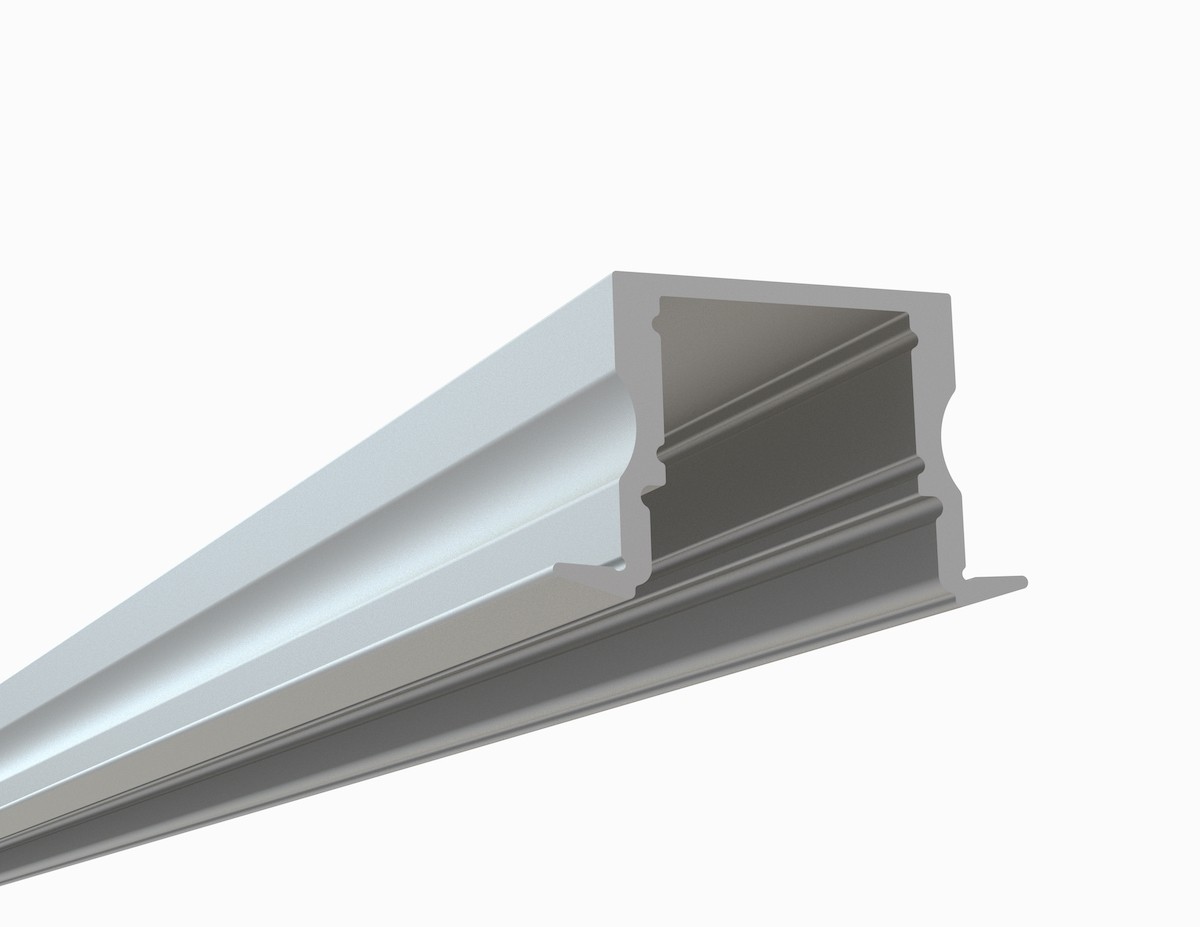

972ASL – Recessed LED Channel

The 972ASL is a slimline low-profile LED Channel compatible with LED Strips up-to 12.3mm (0.48”) wide.

972 Series is designed for recessed drywall applications to provide a clear and finished look. It provides dot-free (hotspot-free) lighting when used with 120+led/m LED tape lights. It can be recessed in drywall that is 1/2in or thicker without altering the studs and is recommended for 5/8 or thicker drywall.

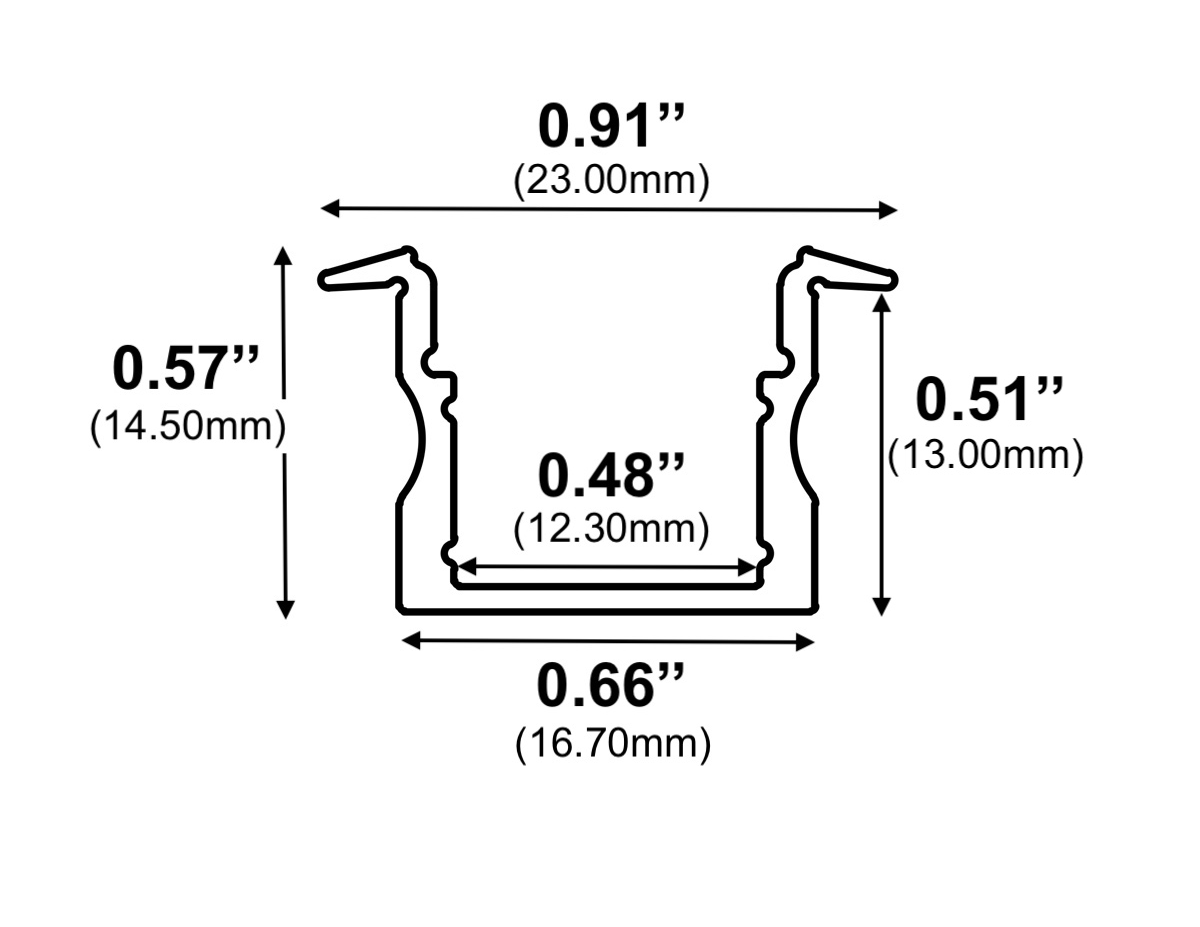

Type:           LED Channel
Material:   Aluminum 6063-T5
Surface:     Natural Anodised
Height:       14.50mm / 0.57″
Width:        16.70mm / 0.66″

Length Availability
4ft (Actual Size 47”) / 1.20m
8ft (Actual Size 94”) / 2.40m
10ft (Actual Size 118”) / 3.00m
Custom Lengths up to 10ft / 3m

DOWNLOAD SPEC SHEET
