LSM32CB

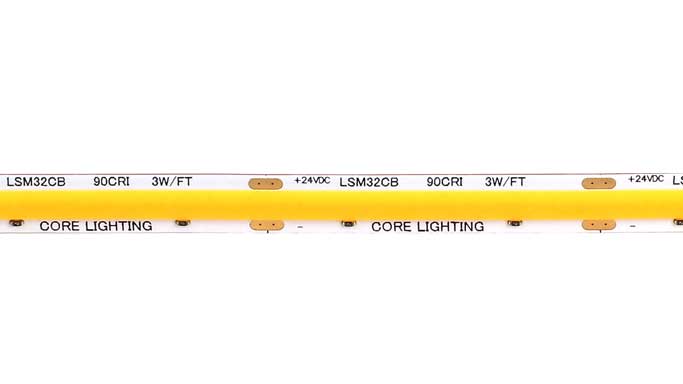

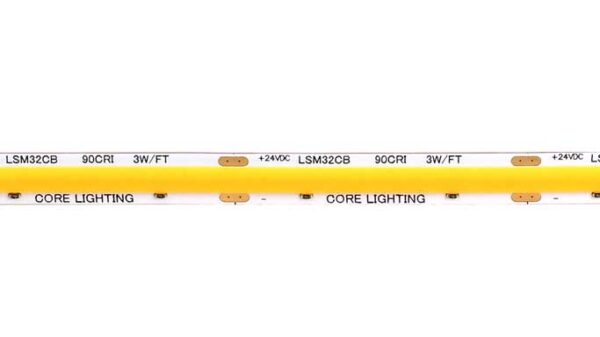

3.2W 292 Lumens Indoor COB LED Strip

The LSM32CB COB LED Tape Light is an advanced linear lighting solution designed for superior brightness, seamless illumination, and exceptional performance. Featuring Chip-On-Board (COB) technology, this tape light offers a uniform, dot-free lighting effect, making it ideal for applications requiring smooth and continuous illumination. Its high efficiency, flexibility, and reliability make it the perfect choice for architectural and accent lighting.

  • 27K
  • 30K
  • 40K
View outdoor version: LSMW-32CB
Category:

Description

INPUT VOLTAGE
POWER CONSUMPTION
LUMEN OUTPUT
CRI
DIMMING
MAXIMUM RUN LENGTH
CUTTABLE
BINNING
OPERATING TEMPERATURE
BEAM ANGLE
IP RATING
CERTIFICATIONS
LUMEN MAINTENANCE		 24V DC
3.2W/Ft.
292 Lm/Ft. (30K)
90+
MLV, ELV, 0-10 and TRIAC
16.4 Ft.
Every 2 in (50.8mm)
2 Step Macadam Elipse
-40°F (-40°C) ~ +140°F (+60°C)
180°
IP54 dry location (Indoor)
UL Listed, TITLE 24 JA8
50,000 Hrs.

FEATURES

Key Features

  • Chip-On-Board (COB) Technology: Delivers uniform, dot-free illumination, eliminating visible LED hotspots for a clean, professional look.
  • High Lumen Output: Provides bright and consistent lighting, perfect for both ambient and task lighting applications.
  • Superior Color Rendering: High CRI (90+) ensures accurate and vibrant color representation.
  • Energy Efficient: Optimized for low power consumption without compromising brightness and performance.
  • Dimmable Compatibility: Works with various dimming systems, including TRIAC, MLV, ELV, and 0-10V, for adjustable light levels.
  • Flexible & Cuttable: Easily customizable to fit specific project requirements with precise cut points.
  • Long Lifespan: Built for durability, offering extended operational life with minimal maintenance.

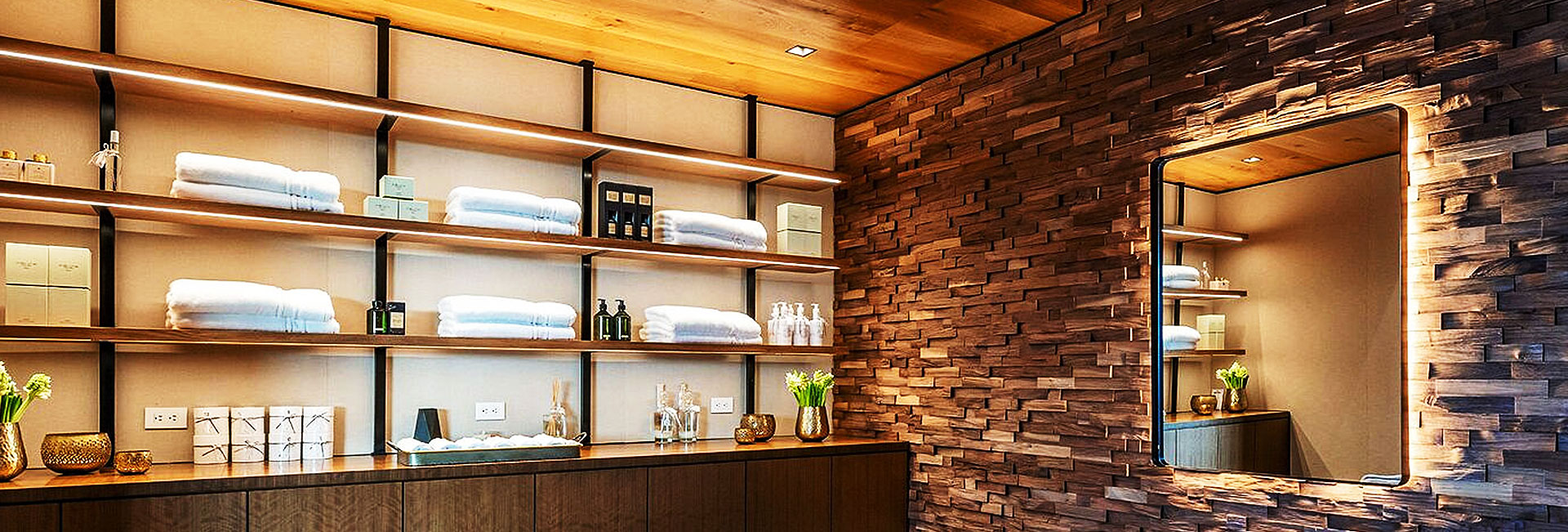

Ideal Applications

  • Architectural Accent Lighting: Enhances building contours, coves, and decorative elements with seamless illumination.
  • Under-Cabinet & Task Lighting: Provides smooth, uninterrupted light for kitchens, workspaces, and display areas.
  • Retail & Commercial Displays: Highlights products with bright, uniform lighting, improving visibility and appeal.
  • Hospitality & Residential Spaces: Creates inviting atmospheres in hotels, restaurants, and modern home interiors.
  • Signage & Edge Lighting: Ensures clear, consistent lighting for branding and promotional displays.

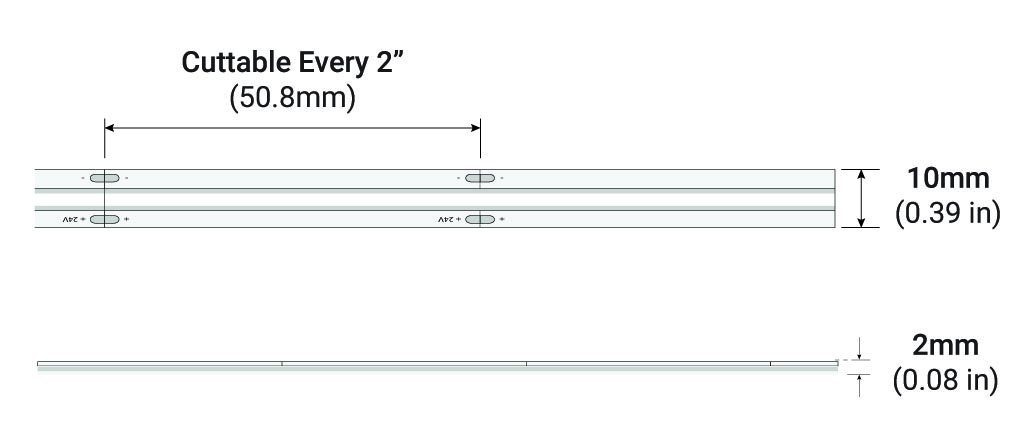

DIMENSIONS

DOWNLOADS

⬇️ LSM32CB

⬇️ Wiring Diagram
